Busbar Processing Machines

Capacity: 3/8" x 4-1/2" (10 x 120 mm)

A complete cut, punch and bend system

Single hydraulic cylinder and work area. Easily change between cutting, punching, and bending.

Supplied with:

7 mm (suitable for 1/4" bolts)

9 mm (suitable for 1/4" and 7/16" bolts)

12 mm (suitable for 3/8" bolts)

14 mm (suitable for 3/8" and 1/2" bolts)

Other round sizes available



Easy tool changing

Easily portable for field use

Punching Guide plus 3 sets of punching templates for rapid punching of 4 hole patterns

Bending angle indicator with adjustable stop control

Support stand for bar

Optional tooling for crimping cable lugs

Foot pedal control

Adjustable stops for positioning bar

Includes hydraulic pump system and foot pedal control

230V / SINGLE PHASE ELECTRICS

Show Less

Capacity: 1/2" x 4-1/2" (12 x 120mm)

A complete cut, punch, and bend system

Single hydraulic cylinder and work area. Easily change between cutting, punching, and bending.

Supplied with:

7 mm (suitable for 1/4" bolts)

9 mm (suitable for 1/4" and 7/16" bolts)

12 mm (suitable for 3/8" bolts)

14 mm (suitable for 3/8" x and 1/2" bolts)

Other round sizes available


Easy tool changing

Easily portable for field use

Punching Guide plus 3 sets of punching templates for rapid punching of 4 hole patterns

Bending angle indicator with adjustable stop control

Support stand for bar

Optional tooling for crimpingn cable lugs

Foot pedal control

Adjustable stops for positioning bar

Includes hydraulic pump system and foot pedal control

230V / 3 PHASE ELECTRICS

Show Less

Capacity: 1/2" x 6" (12 x 150 mm)

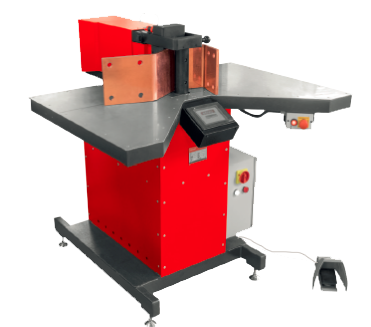

A complete "Three in One" fabricating machine

Cut, punch and bend system with 3 separate work areas

PLUS numerous optional tools to produce ground/earth straps in a single pass plus crimping tools for cable

Three separate work areas
No need for changing heads
Three foot pedals, plus manual push button control
Three phase power required
Fast quiet operation

OPTIONS:
Round and Oblong punch sets. Special bending (forming) blocks to produce single or dual bends for ground links Crimping dies for cable lugs

Show Less

Capacity: 5/8" x 8" (15 x 200 mm)

A complete "Three in One" fabricating machine

Cut, punch and bend system with 3 separate work areas and 3 hydraulic pumps

PLUS numerous optional tools to produce ground/earth straps in a single pass plus crimping tools for cable

Three separate work areas
Three hydraulic pumps for improved simultaneous operation
No need for changing heads
Three foot pedals, plus manual push button control
Three phase power required
Fast quiet operation

OPTIONS:
Round and Oblong punch sets. Special bending (forming) blocks to produce single or dual bends for ground links Crimping dies for cable lugs

Show Less

Basic unit on trolley SLB 125

The unique SLB 125 3-in-1 busbar center guarantees effortless cutting, punching and bending of copper busbars up to 125 x 13 mm (4" x 1/2"). Ideal for the switchgear work shop or at a site, the base unit transforms into a cutting, punching or bending machine within seconds.

Advantages

• Especially robust and stiff frame
• Lightning-quick tool changes with a minimum of manipulation
• Very high quality cutting, bending and punching
• The 150 bar low-pressure system ensures a long service life and very fast cycle times
• Busbars bent accurately up to 120° – very accurate reproducibility of the set angle
• Accessories for flexible busbars available

Technical specifications

Height	1,145 mm
Depth	750 mm
Width	750 mm
Weight	180 kg
Operating pressure	150 bar
Force	180 KN
Power rating	1~230 V/50 Hz
Voltage	0.75 KW
Cutting max.	max.125 x 13 mm 250 N/mm2
Punching max.	max Ø 6 bis 21 mm
Bending max.	max. 125 x 13 mm 250 N/mm2

Show Less

CUT PUNCH BEND

The NOVOPRESS systems are designed specifically for manufacturers of switchgear and offer the highest quality and long-term reliability.

They consist of a number of varied components (see below) that can be packaged to form a complete fabricating system designed exactly to customer requirements.

This can include “digital” bending and punching for the most efficient and fast production.

Optional bending tools are available for precise specialty applications.

Show Less

For Medium-Sized Enterprises

With the DigiPunch 160, Novopress offers a new class of busbar punching performance for medium-sized enterprises.

Wherever manual punches are insufficient and CNC-controlled machines are too costly, the DigiPunch 160 is the ideal mid-size solution.

It significantly reduces manufacturing time and cost, at a very modest investment compared to CNC punches. The very practical configuration with digital metering in X/Y axis and complete conveyors enables very efficient and flexible busbar manufacturing.

All necessary components except power pack and work cylinder are included in delivery.

The LCD measuring system works on a permanent battery basis.

Punch and die are interchangeable by quick lock mechanism within 20 sec. The solid die-holder enables progressive punching for oblong and slotted wholes.

We offer a large assortment of punching dies, especially matched with the needs of the electrical industry.


Advantages:

• Significantly reduced manufacturing cost on medium to medium-large output volume

• Optimized and speedy workflow through integrated conveyor system and work-bench

• No programming or preparatory work required, and very short set-up times

• Fast and stepless positioning of busbars in X and Y axis, with 0.5 mm accuracy

Show Less

NEAR EXACT BENDS REGARDLESS OF SPRING-BACK AND THICKNESS



The BGD5eco and BGD5.1 are outstanding examples of automated benders. Both feature digital angle entry with automatic springback compensation. Entering an angle gives you an almost exact bend regardless of spring-back and thickness of material.



They are ideal for production for repetitive angles and fast production applications.



The BGD5.1 takes it many steps further. A moveable stop device allows you to enter the required leg length, plus the memory can store various bend shapes that can include leg lengths and angles. They can be easily recalled as the machine runs through the sequence of bends and lengths.



Design work can be done in the office through the NOVOBEND software and transferred to the BGD5.1

Show Less

Three-in-one Busbar Fabricating System Cut-Bend-Punch



A combination modular and portable system that will cut, bend and punch.

Standard System Includes the following modular attachedments:

• Cutting Unit
• Bending Unit
• Punch Unit
• Power Pack
• Foot Pedal Control



Cut, punch and bend copper and aluminum busbars with the SLB 125 three-in-one bus bar tool. Ideal for flexible use in the workshop and on-site. The basic unit transforms quickly and easily into a cutting, punching or bending machine.



The complete bus bar fabrication system - combines accuracy with simplicity and speed.
